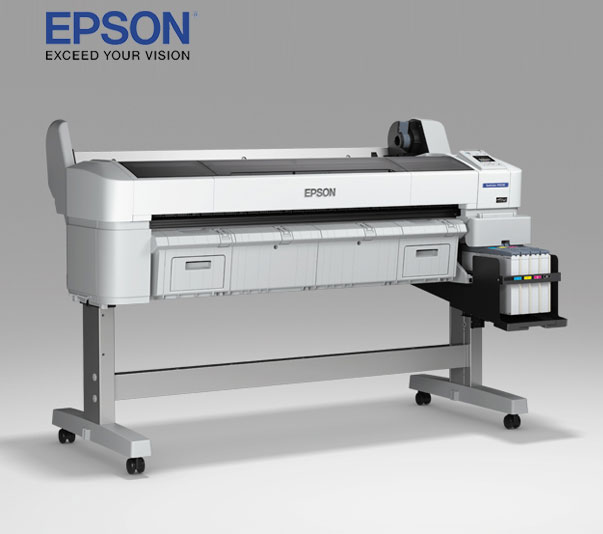

The SureColor SC-F6070 is the world's first original ink tank large format printer and Epson's first textile printer that enables up to 17 hours of non-stop operation, which is ideal for commercial production.


Genuine Ink Tank System

Commercial large format printing places great demands on speed and turn around time. The SureColor F6070 is the first in the class to integrate large, 1.5L capacity ink tanks for increased productivity and efficiency, reducing the frequency of ink refills while at the same time enabling fast, high-volume printing. Refills, when needed, come in convenient and value-for-money 1L packs containing genuine Epson ink for the best quality.

Superb Reliability

Designed for dye-sublimation, the SC-F6070 offers continuous printing and reduces shudder with a high rigidity welded frame while printing. The Auto Tension Control feature also works according to the diameter of the media for a more accurate paper feeding.

Impressive Image Quality

Developed over a three-year period, Epson UltraChrome® DS is a specially-formulated dye-sublimation ink, producing outstanding images with vibrant colours, intense blacks, sharp contours, and smooth gradations. This all-new ink technology exhibits excellent light and wash fastness, as well as resistance to alkaline and acide perspiration.

Oeko-Tex Certification

The four colour Epson dye-sublimation inks used in the SC-F6070 printer, when applied to polyester fabrics, pass the requirements of Oeko-Tex Standard 100 for human ecological requirements of Class 1 products for adults, children, and babies up to 36 months. Oeko-Tex Standard 100 specifies testing criteria for the presence of harmful substances within a textile product. The standard belongs to the International Association for Research and Testing in the field of Textile Ecology (Oeko-Tex).

Designed for Convenient Operation

The SC-F6070 comes standard with an industry-leading RIP that provides complete layout and printer management, with powerful colour management technology dedicated to professional imaging that lets you start printing productively with little to no deployment time.

Easy Ink Replacement

The ultra high capacity 1L ink packs eliminate the need for frequent ink cartridge replacements. The ink tank system is fully integrated into the printer design and is easy to refill.

User-friendly Layout

All major functions and features like the ink tank system, control panel and take-up reel control can be conveniently accessed on the right side of the printers, reducing unnecessary time spent on locating different features.

Easy Operation from the Front of Printer

Easy-to-Use Interface

The new 2.5" colour LCD screen control panel lets users use shortcut keys to check and use printer settings intuitively. The large LED alert lamp notifies users of any printing errors. The paper feed button allows users to adjust the paper feed without stopping any print jobs, ensuring minimal print wastage.

Status Notification System

A status notification system alerts users of the printer status via e-mail.

Alert Lamp & Buzzer

In the event of printer error, users are quickly alerted.

A World of Creative Applications

The high print speed and quality of the SC-F6070, combined with its low running cost makes it ideal for a myriad of applications that include fabric-based soft signages, customised curtains and interior decoration fabrics. Printed dye sublimation sheets can also be used to apply designs via heat transfer onto pre-coated hard surfaces on items such as souvenir items - mugs and magnets, sports equipment like skateboards, wall tiles or product housings.

The SC-F6070 utilises Epson UltraChrome® DS Ink, which does not require special ventilation when used indoors and features a safe pigment formulation that is 100% free of nickel and fluorine compounds.

Technical Specification

Print Method MicroPiezo TFP® Print Head
Nozzle Configuration 360 x 2 nozzles each colour (x4)
Print Direction Bi-directional printing, uni-directional printing
Maximum Resolution 720 x 1440 dpi
Minimum Ink Droplet Volume 5.3 pl
Print ModesResolutionPass Print Speed (m²/H)
High Speed720 x 7202 30.2
Production2720 x 7203 22.7
Production3720 x 7204 15.8
High Quality720 x 7206 11.2
High Quality720 x 14408 8.3
Ink System
Ink Type Epson UltraChrome® DS ink Technology
Colours Cyan, Magenta, Yellow, Black
Ink Tank Capacity 1500ml
Ink Pack Capacity 1000ml
Paper Handling
Paper Feed Method Friction Feed
Roll Outer Diameter Up to 150mm (3" roll core)
Roll Core Size 2" or 3"
Media Width 254mm (10") to 1118mm (44")
Printing Width (Margin) Max. 1112mm
Side Margin: 3mm both sides
Model Epson
Media Thickness 0.08 - 0.50mm
(Over 75gsm)
Control Panel
Colour & Size 2.5" Colour LCD
Number of Dots 480(W) x 240(H) dot
Connectivity
Standard USB 2.0 Hi-speed
Ethernet 100BASE-TX / 1000BASE-T
Memory
Main 512MB
Network 128MB
Control Code ESC / P raster
Electrical Specifications
Rated Voltage AC 100 – 240V (AC 90 - 264V)
Rated Frequency 50 – 60Hz
Power Supply 50 – 60Hz 1.0 - 0.5A
Power Consumption
Operating Approx. 65W
Standby Approx. 20W
Sleep Approx. 3W(Interface is 1000BASE-T)
Power Off Less than 0.4W
Acoustic Noise Level
Sound Pressure Level
Approx. 55.1dB
Sound Power Level
Approx. 7.3dB
Printer Software on CD-ROM Communication Driver, User's Guide, EPSON LFP Remote Panel 2, EpsonNet Setup, EpsonNet Config, EpsonNet Print
Ink Cartridges

UltraChrome DS Ink Pack 6L (6 x 1 Liter)
Black Dye Ink Pack 6L C13T741100
Cyan Dye Ink Pack 6L C13T741200
Magenta Dye Ink Pack 6L C13T741300
Yellow Dye Ink Pack 6L C13T741400
Other Consumables
Maintenance Box C13T619300
Accessories
Auto-Cutter Spare Blade C13S902006
Maintenance Kit C13T724200
