3D Scanning microscope. The capturing device for troika QC application. A must to control your print quality.

What is Anicam?

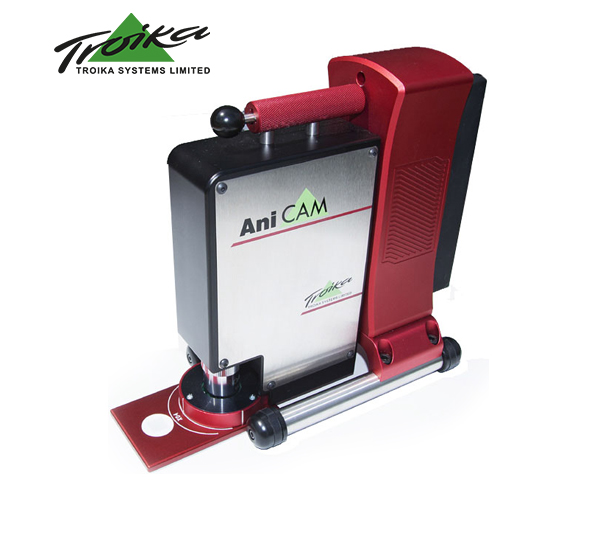

The AniCAM 3D Scanning Microscope is the capturing device for Troikas Quality Control Applications to measure Flexo-Plates, Anilox Rolls and Gravure Cylinders. These applications are proven to enable printers to know the condition of their rolls or plates and make savings by reducing press setup time and waste.

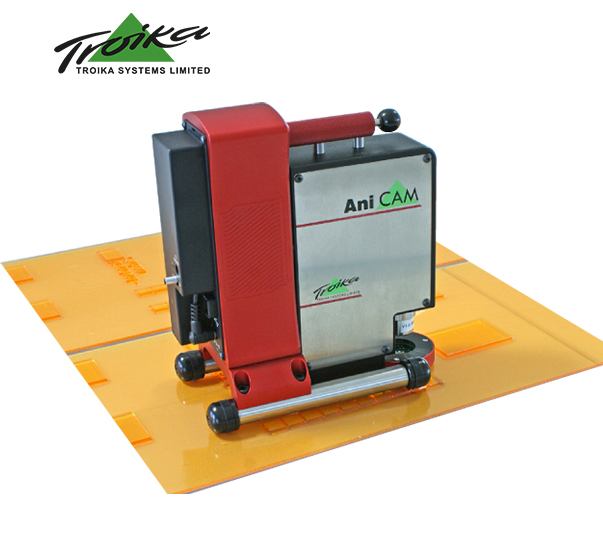

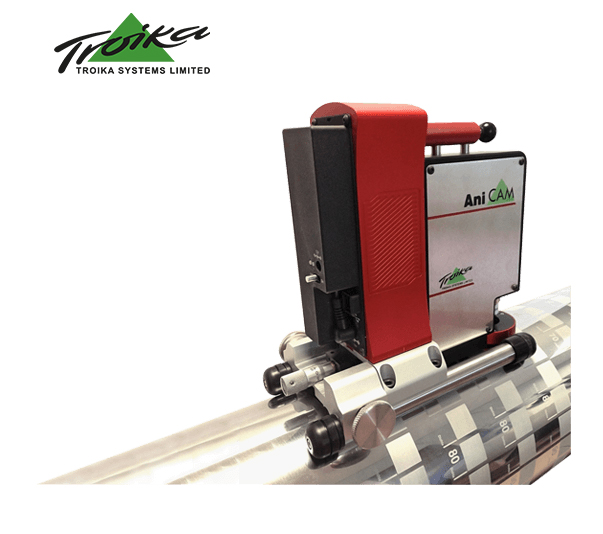

Its design allows the camera to be placed on flat material and/or ceramic, chrome or steel cylinders. The internal high-tech motors can be stepped in fractions of a micron. The 3D images are generated from a number of "photos" taken at a different focus depths. The software combines the sharp parts of each image and creates the 3D representation of the substrate for which depth, opening, volume, dot shape and profile can be analysed.

Coaxial and Radial Light

The camera unit is equipped with two light sources: Coaxial light is directed straight down onto the surface of the material and reflected back up the same path and onto the camera. It is essential for the Autofocus and readings.

The Radial Light is a 2 x 9-LED ring system that is designed to radiate light into the cells, which leads to an optimum illumination for most accurate readings.

Technical Specifications
Electronics Mono CMOS camera with 640 x 480 pixel resolution.
USB2.0 Control via PC
External ac power supply
Dimensions AniCAM: 15,5 x 9,5 x 19 cm (W x D x H)
AniCAM Case: 37 x 30 x 17.5 cm (W x D x H)
Weight High
Environmental conditions Temperature: 16° - 32° C / 60° - 90° F
Humidity: 40% - 60%, non-condensing
Minimum PC-requirements Intel or AMD processor, 2+ GHz, 2+ GB RAM, 1024 x 768,
24-bit Display, USB2.0, 60+ GB hard disk space
Operating Systems Windows XP / VISTA / Windows 7
Warranty 12 months. Software upgrades FOC for 12 months.
AniCam Product Specifications
Material Chrome and Copper Gravure cylinders (20 - 200 lpcm | 50 - 500 lpi)
Ceramic Anilox cylinders (40 - 475 lpcm | 100 - 1200 lpi)
Flexo Plates & Sleeves (22 - 80 lpcm | 55 - 200 lpi)
Minimum roll diameter: 2.5" / 63 mm
Image Analysis Images are taken by the camera and transferred via USB to the PC (Laptop).
The 2D and 3D image analysis and calculations are done by dedicated Troika QC software applications
Digital Zoom range 1:1 up to 6:1
Data archiving Flexo Plate readings: .fcp format (incl. 2D/3D info)
Anilox readings: .acp format (incl. 2D/3D info)
Gravure readings: .gcp format (incl. 2D/3D info)
All readings: JPEG and BMP (bitmap export)
Light Source 1 co-axial and 2 x 9 radial white light LEDs (SW-controlled)
Lenses The Microscope comes with three lenses (x04, x10 and x20)
Gravure QC Application
AniCam Gravure
  • 3D cell profile analysis (X/Y/Z)
  • Cell Volume
  • Cell Depth
  • Cell Opening
  • Wall Width
  • Channel Width
  • Engraving Angle
  • Screen Count
  • Stylus Angle
Anilox QC Application
AniCam Anilox
  • 3D cell profile analysis (X/Y/Z)
  • Cell Volume
  • Cell Depth
  • Cell Opening
  • Wall Width
  • Engraving Angle
  • Screen Count
  • Any X/Y measurements
FlexoPlate QC Application
AniCam Flexo
  • 3D dot profile analysis (X/Y/Z)
  • Dot percentage
  • Screen Count
  • Dot hight analysis
  • Screen angle (on sleeves)
  • Relief depth
  • Any X/Y measurements
