Save valuable production time by getting to the bottom of print problems with a click of a button. Visually see and measure dot sizes on printing plates and printed copy.
Plate II Print HD

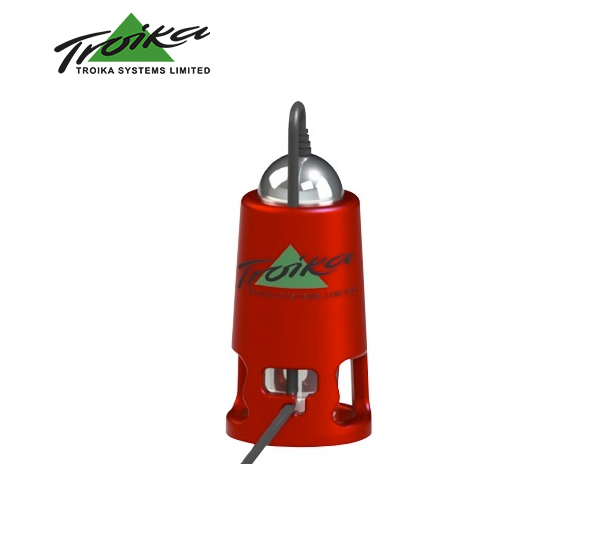

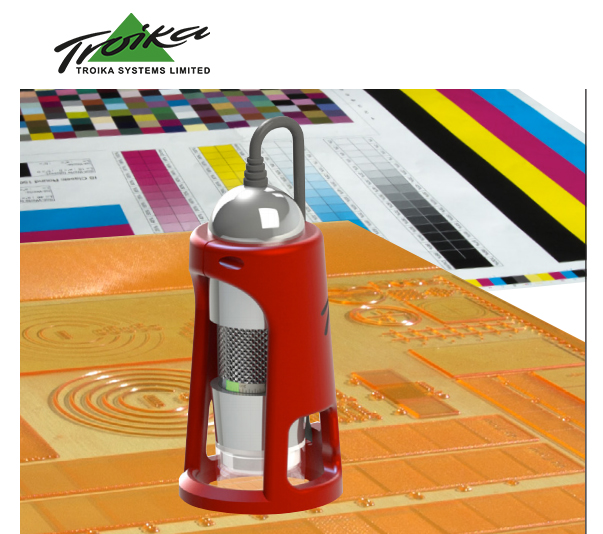

With Flexo Plate-II-Print HD, dot measurement has never been so fast and easy.
Save valuable production time by getting to the bottom of print problems with a click of a button. Visually see and measure dot sizes on printing plates and printed copy. End the finger pointing between prepress, platemaking and the printing department. Never has there been so much power packed into such a portable and easy-to-use solution for solving flexo print problems.

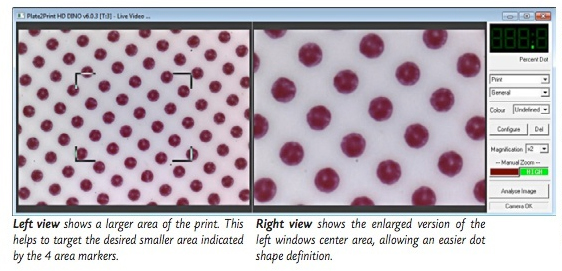

The Plate II Print HD measures dot width, screen count, angles and consistency.
|Benefits of Plate II Print HD||
|Media||Flexo plates and sleeves
|Dot Evaluation||Halftone dots: 24 lpi - 240 lpi | 10 - 100 lpcm
Numeric %-display | Dynamic graphic display
Screen angle / ruling calculation
Positive / Negative reading
Accuracy better than 1% over full range of readings
|Value Comparison||Numeric and graphical comparison between plate and print readings|
|Interface||High speed USB 2.0 link|
|Optical Range||Adjustable from: min zoom 7.5 x 5.6 mm to max zoom 500 x 400 μm|
|Connectivity & Storage||.jpg, .bmp or .p2p file formats
Direct application interface (RIPs, spreadsheets, etc.
|Light Source||White light LED|
|Electronics||5 Megapixel RGB camera with
2592 x 1944 pixel resolution
USB Control via PC
Powered via USB – no batteries needed
|Dimensions||Plate-II-Print HD unit:
12 x 5.5 x 5.5 cm (H x W x D)
Plate-II-Print HD boxed:
7 x 18 x 21 cm (H x W x D)
|Weight||Plate-II-Print HD unit: 150 g
Plate-II-Print HD boxed: 750 g
|Environmental Conditions||Temperature: 16° - 32° C (60° - 90° F)
Humidity: 40% - 60%, non-condensing
|Minimum PC-Requirements||Pentium IV, 2.4 GHz, 1 GB RAM, 1024 x 768, 64 MB Video card, USB 2.0, 2+ GB hard drive space|
|Operating Systems||Windows XP/2000/Win 7/Win 8|
|Warranty||12 months return to base. Software upgrades free of charge for 12 months after purchase.|

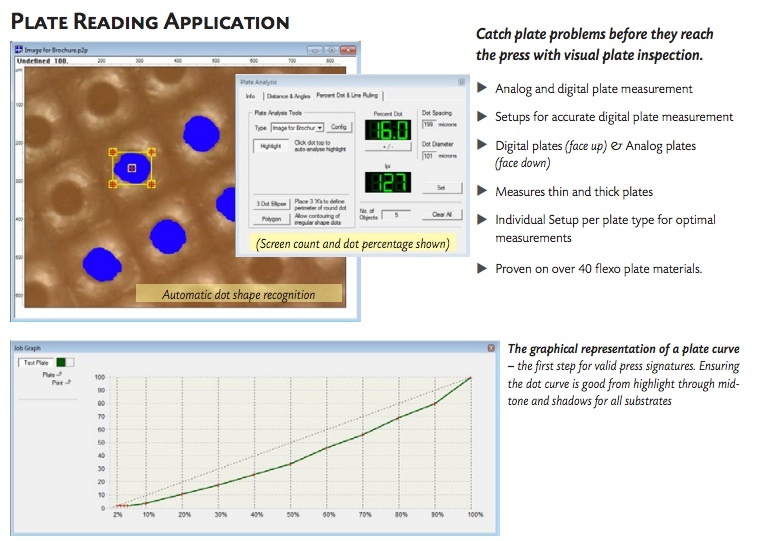

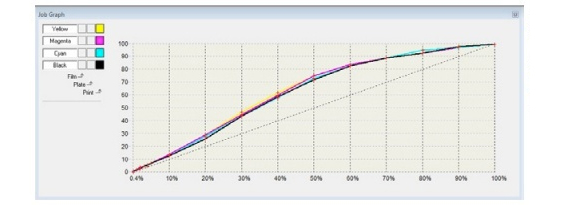

The graphical representation of printing curves
- for signature inspection good dot quality is essential. Once the quality approved, the signature more valid for all colours on the substrates.
