ColoRuler
A Scanning Spectrophotometer. A Ruler for Color Quality. A Tool for Printing Process Control
What does ColoRuler do?

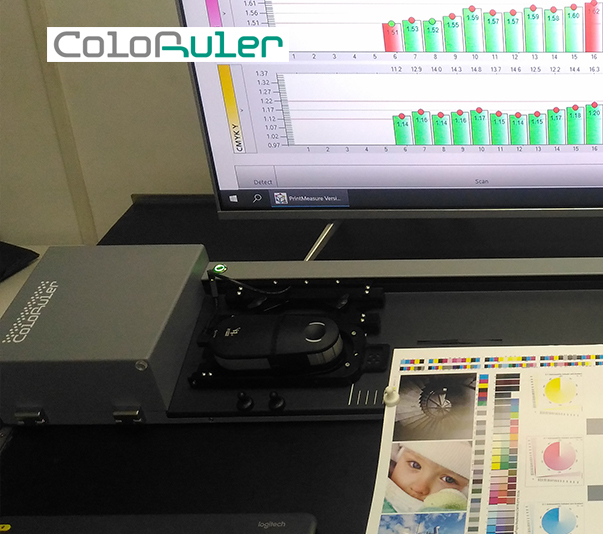

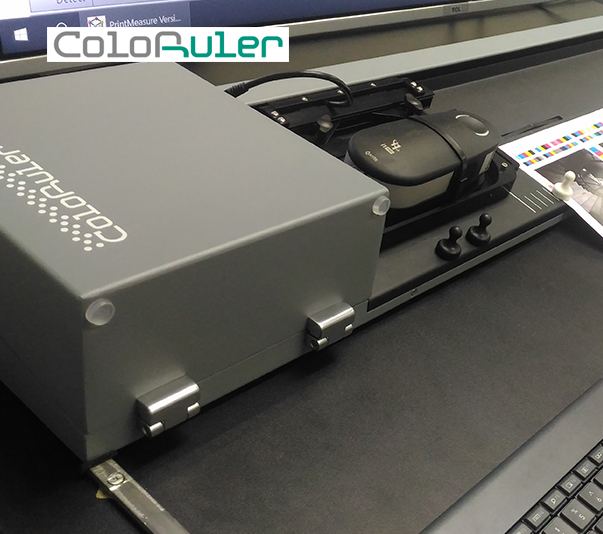

- The ColoRuler scans a color bar on press sheets automatically.
- Improves efficiency and decreases waste of press.
- Simple and meaningful display for press operators.
- Makes press diagnostics easy.
- Direction connection to the world's best color analysis platform.
- Plug and play setup in 20 minutes.
| ColoRuler scan track harware specification | |
| Color bar requirements | Minimum patch size 5mm x 5mm, maximum bar length 1040mm |
| Paper positioning | Floating paper stop, suction positioning. (Compressed air vacuum converter included, without vacuum pump - Optional) |
| Computer | Built-in microcomputer, with Windows 10 operating system (Wireless mouse and keyboard included, does not include the display monitor - optional) |
| Size and weight | 1500mm L x 240mm D x 110mm H 13kg |
| Nozzle Configuration | Color and Monochrome; 800 nozzles x 10 channels |

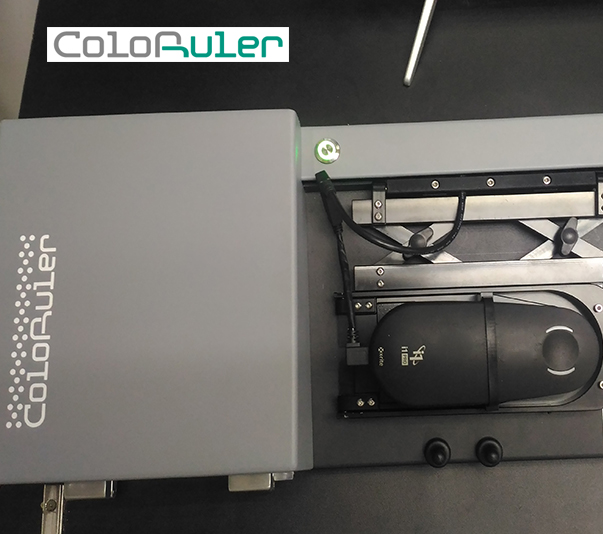

| ColoRuler measurement head specifications | X-Rite i1Pro |
X-Rite i1Pro2 |
Konica Minolta FD-7  |
| Measurement light source | Gas filled tungsten | Gas filled tungsten | LED |
| Measurement spectral range | 380~730nm | 380~730nm | 380~730nm |
| Geometry | 45°/ 0° | 45°/ 0° | 45°/ 0° |
| Measurement conditions | M0 | M0 | M0/M1/M2/M3 |
| Measurement mode | Motorized spot and scanning | Motorized spot and scanning | Motorized spot and scanning |
| Illumination spot / aperture size | 3.5mm / 4.5mm | 3.5mm / 4.5mm | 3.5mm / 4.5mm |
| Minimum patch size | 5mm x 5mm | 5mm x 5mm | 5mm x 5mm |
Color measurement & data analysis software designed to improve work efficiency

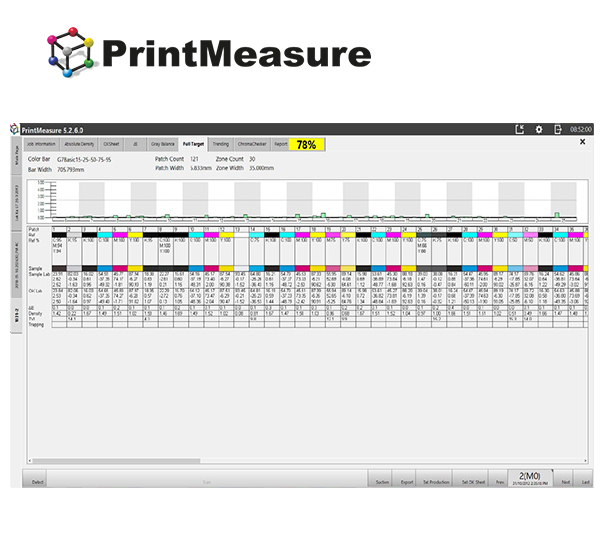

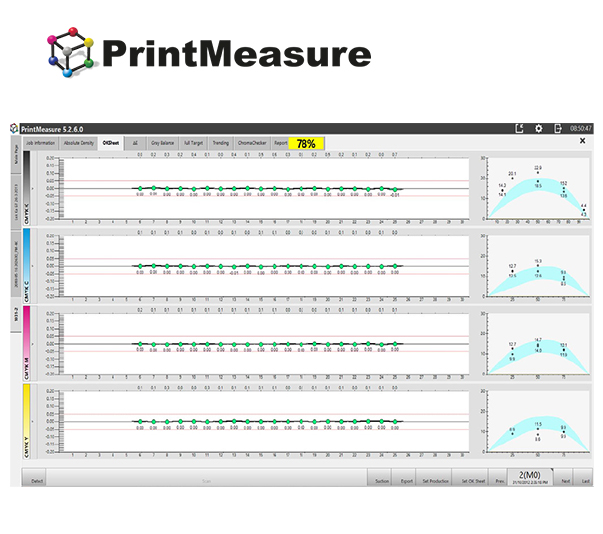

With the industry’s progression towards standardization, automatic color measurement device for print sheets became a crucial instrument in the press room. PrintMeasure is a precise and easy-to-use software, which is combined with a variety of automatic scanning spectrophotometers to form an automatic print color tracking system. It is used to monitor the quality of the print production and press status, accurate and fast detailed data records, easy to follow up.
| PrintMeasure Software features | Pro | CR |
| Multilingual - English, Traditional / Simplified Chinese | ||
| Simultaneous processing working job | ||
| Support CMYK & spot color up to 16 print units | ||
| Delta-E calculation formula - CIE76, CIE94, CIE2000, CMC | ||
| Import ICC profile | ||
| Automatic color bar detection | ||

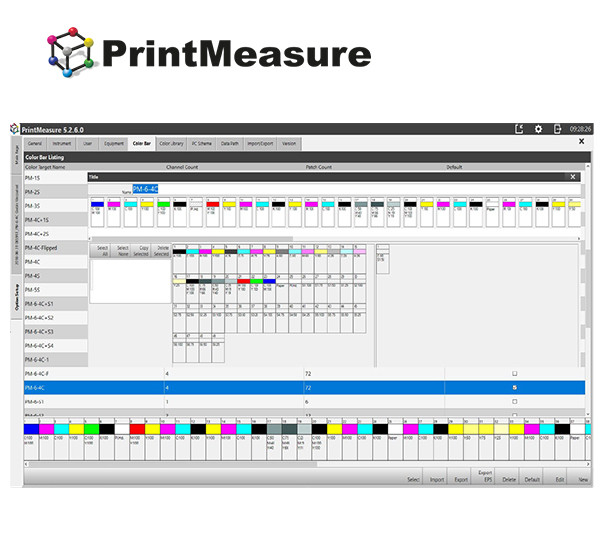

| Custom color bar and reference | ||
| Density per ink zone | ||
| Relative to aim point density per ink zone (Delta density) | ||
| Dot gain curve | ||
| Delta E analysis | ||
| Detail data display - Spectral curve, L, a, b, C, h Dv, Dc, Dm, Dy | ||
| Full color bar display | ||
| Full color bar display | ||
| OK sheet compare display | ||
| Comparison of single-point and multi-point measurement | ||
| Manually spot measurement | ||
| Spot & long color bar auto scan - ColoRuler | ||
| Spot & long color bar auto scan - Techkon SpectroDrive | ||
| Long color bar auto scan - X-Rite IntelliTrax | ||
| Export to standard data (eg. ISO 28178 / InkZone XML) | ||
| Point system for print result | ||
| Corresponding other software and synchronization (eg. PressSIGN / InkZone) | ||
| OK Sheet point system | ||
| Custom point system | ||
| Best match density and average density setting | ||
